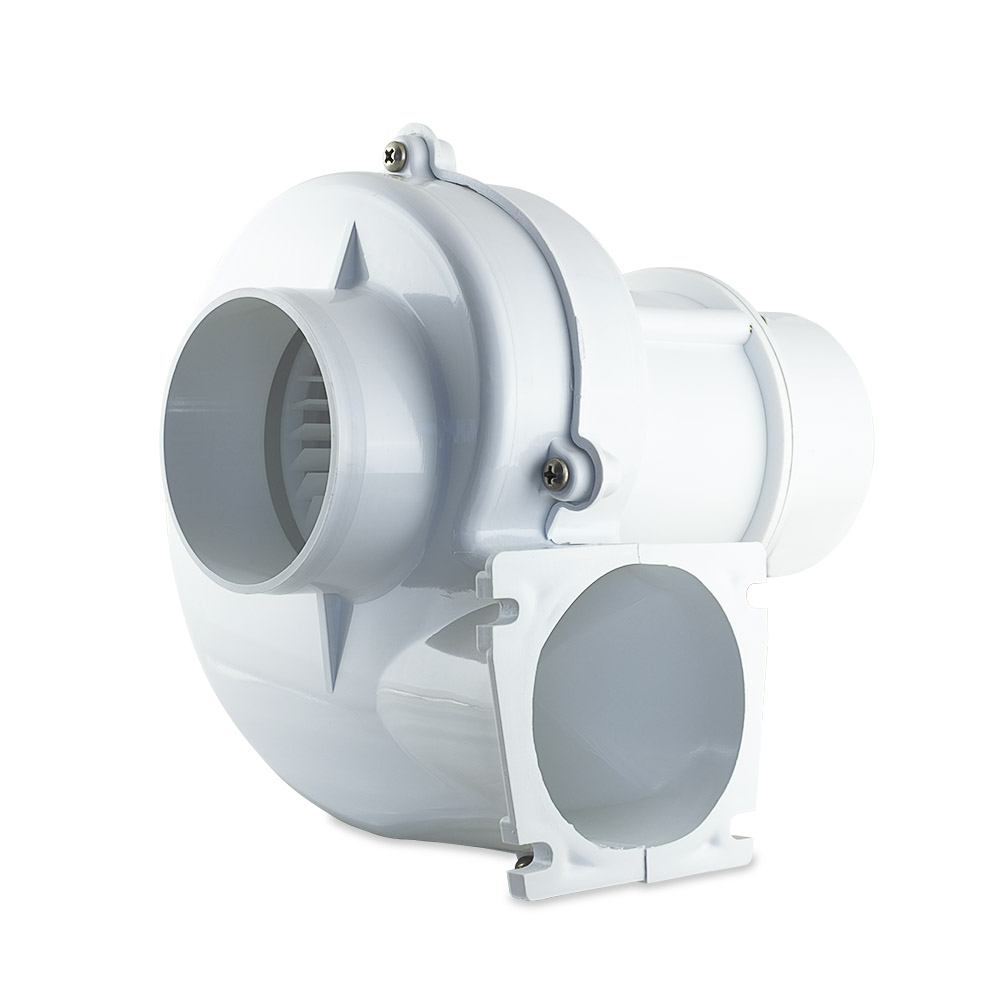

Albin 3″ Radial Ventilation Marine Air Blower – 280 Flange
Radial marine air blower for ventilation of engine compartment and air extraction prior to start-up. Also great for bilge ventilation, galleys or any other compartment.
This 3″ flange mounted marine ventilation radial blower has a capacity of 280m3 per h (163CFM). Built with a tough body in hermoplastic PA6 high durable white Nylon with integrated blower motor. Operates in a 12V circuit with a 3.8A fuse.
Interchangeable with Jabsco 34739-0010, Johnson Pump 80-47416-01.
Air blowers cover a wide range of ventilation needs and are suitable for almost any installation situation. Engine compartment air extraction prior to startup, bilge ventilation, galleys or any other compartment. In-line, flange as well as flex mount compact design with motor integrated in center of blower. Double ball bearings with a high impact thermoplastic body and also solid durable assembly surfaces.
- Weight: 0.88 kg/1.5lbFlange or flex mount
- Compact design with motor integrated in center of blower
- Double ball bearings
- High impact thermoplastic PA6 highly durable white Nylon body
- Solid, durable assembly surfaces
|10-02-001||280m³ / h
(163ft³ / min)
|Inlet: Ø 75 mm (3″)
Outlet: 92 x 80 mm (3.6 x 3.2 in)
|12V||3.8A||200 x 165 x 195 mm
(7.9 x 6.5 x 7.7 in)
|Johnson Pump 80-47416-01
Please go to the official Albin Pump Marine site www.albinpumpmarine.com to see the full range of options and extras. We are here to help too, feel free to get in touch and we can help with pricing and also details, please call +852 2827 5876 or use our contact page.
