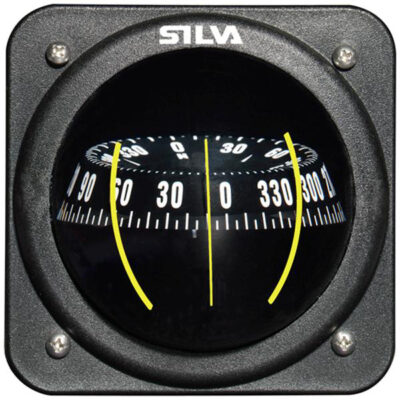

SILVA 100P Compass – Bulkhead Mount
The Silva 100P compass is designed for sailboats and yachtsmen that demand absolute accuracy, a steady card in all conditions and furthermore, high heeling angles. You mount the compass in the bulkhead.
It is suitable for mast-mounting thanks to front reading, 30° heeling angle and three lubber lines for multi-angle reading. The main steering scale on the horizontal part and direct reading on the vertical edge make the 100P ideal for boats with a sitting as well as a standing helmsman. With its compact size, SILVA 100P will it fit in most spaces and boats.
SILVA 100B/H Compass Features
- Read from front and above with the double scales
- Curved lubber lines allow accurate reading from different angles
- Compact size
- Accuracy of ± 0,5° (8.9 mils)
- Waterproof
- Calibrated for Magnetic North (good for Hong Kong, Macau and also other parts of Asia)
- Weight 769g
Compass Specifications
| Article number | 37186-0101 |
|---|---|
| Accuracy | ± 0,5° (8.9 mils) |
| Apparent card diameter | 105mm |
| Built-in compensator | Optional |
| Card type | Cone |
| Compatibility | Sailboats |
| Dimensions | 128x115x103mm |
| Gimballed cradle | No |
| Heeling angle | Roll: 30° Pitch: 30° |
| Heeling angle scale | No |
| Illumination | No |
| Lubber lines | Centre and 2x side view at 45° |
| Material | Acrylic/ABS |
| Memory ring | No |
| Mounting | Bulkhead |
| Protective cover | No |
| Temperature operating range | -10°C to +70°C |
| Type of compass | Steering compass |
| Variant | Magnetic North |
| Water resistance | Waterproof |
| Weight | 769g |
Bulkhead Mount Compasses
SILVA specifically designed bulkhead mount compasses for sailboats and yachtsmen who demand absolute accuracy and a steady card in all conditions as well as high heeling angles.
The gimballed lubber lines stay vertical even if the boat is heeling (max 45°). The extra two lubber lines at 45° permit reading from the rail as well as an off steering position.
For more information on this and other products from SILVA please go to their website here www.silva.se. For pricing and stock availability please contact us.
