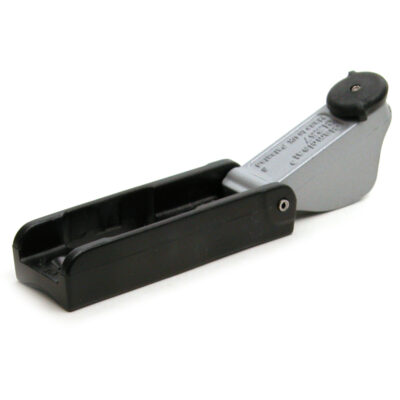

Clamcleat CL257 Auto-Release Racing Mini
The Clamcleat CL257 Auto-Release cleat provides the neatest and best solution to the problem of how to lock-down a rudder blade yet allow it to flip-up if it hits the bottom or a solid obstacle in the water. The cleat holds ropes securely yet will release them immediately when the cleat is overloaded. Once tripped, it can be easily reset in seconds by just pushing the cleat back down into its base.
The Clamcleat CL257 is also fitted with an adjustable cam so that the release tension can be set to suit the boat and local conditions. The cam is adjusted until the rudder blade is held down reliably under maximum sailing conditions. The CL257 will then be set so that the least strain is put on the rudder if it hits an obstacle.
The Clamcleat CL257 Auto-Release Racing Mini can be fitted to virtually all lifting tillers and can also be used to protect centre boards (please view fitting instructions).
The Clamcleat CL257 Auto-Release Racing Mini has recently received an upgrade to the cam and screw to enhance performance in challenging applications. There is an upgrade kit available for models prior to January 2005.
Clamcleat CL257 Features
- Countersunk fixing holes
- Rope Size: 4-6mm
- Material: Aluminium and Acetal
- Dimensions: 68 x 24mm
- Hole Spacing: 36mm
- Bolt Size: M4
- Screw Size: 4.2mm
- Weight: 31g
Can be used along with the CL257 Upgrade Kit if needed. In January 2005, theCL257 received a “Screw” and “Cam” upgrade to enhance performance in challenging applications.
For full details of this and other products please go to the Clamcleat website here: www.clamcleat.com
