Spinlock XTS Rope Clutch
Spinlock XTS Rope Clutches are specified as standard on larger product yachts worldwide and the choice of racing yachts inshore and offshore. This clutch features an extruded alloy handle with a soft end grip and the user has the ability to secure the handle in an open or closed locked position. The most current version of the XTS rope clutch has an identical footprint to the original version making it simple to upgrade. The two version of this clutch offer a wide line diameter range, 6 – 10 mm and 8 – 14 mm.
The clutch range covers single, double and triple models as well as a side mount single version.
Spinlock XTS Clutch Features
- Mid to higher load rope holding
- Reliable all around performance
- Choose XTS0610 for best performance on smaller diameter lines
- Choose XTS0814 for best performance across the rope range
- Extruded alloy handle with soft end grip
- Secure handle locking in open and closed position
- Easy access to fasteners
- Handle labels supplied
Specifications
XTS0610
Lines: 6mm – 10mm (1/4″ – 3/8″)
Loads up to 1000kg (2200lbs)
XTS0814
Lines: 8mm – 14mm (5/16″ – 9/16″)
Loads up to 1000kg (2200lbs)
XTS0610 – Small diameter, high load
For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line. To upgrade from XTS0814, fit CAM-0610

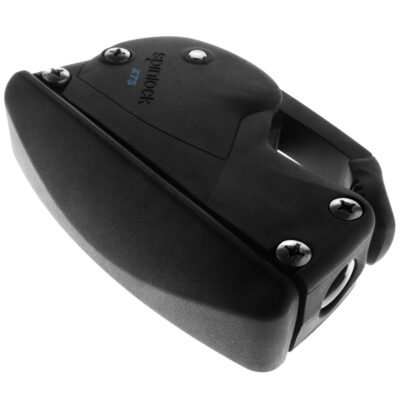

Side Mounting
Side mounting is usually the neatest solution for spars, side decks and coamings
Endless Line XTS/M
Solves the problem of loading a continuous furling line
These clutches are supplied as kits with open bullseyes to be assembled directly onto the line
Lock Open Cam XTS/L
Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed
Weights
XTS Single – 545g (19.1oz)
XTS Double – 1050g (36.8oz)
XTS Triple – 1585g (55.5oz)
Fasteners
XTS Single – 2 x M8 (5/16″) CSK Head (not supplied)
XTS Double – 4 x M8 (5/16″) CSK Head (not supplied)
XTS Triple – 6 x M8 (5/16″) CSK Head (not supplied)
