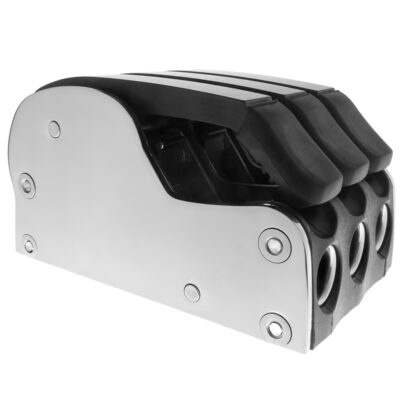

Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch
Spinlock XCS Rope Clutch

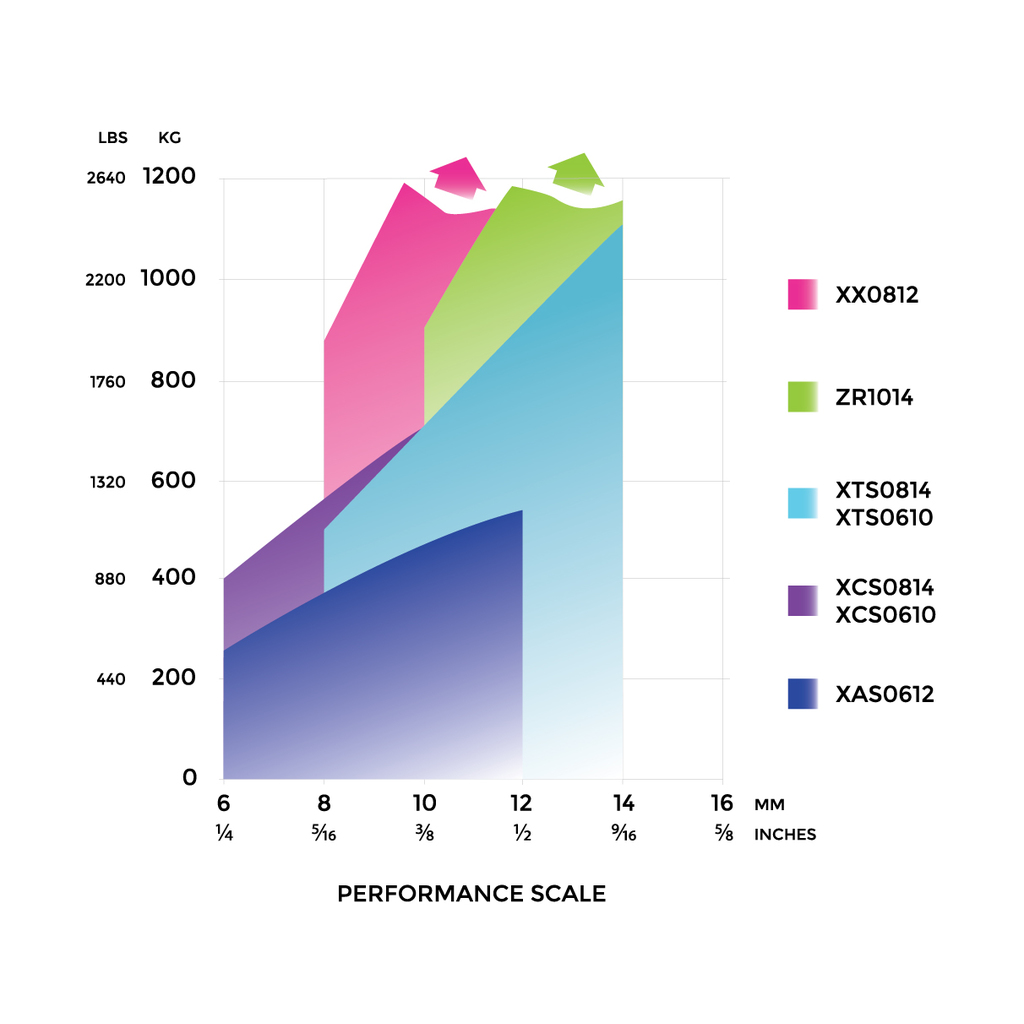

Spinlock XTS and Spinlock XCS Rope Clutch - Graph

Spinlock XCS Rope Clutch

Categories: Clutches & Jammers, Rope Clutches Tags: Clutches, Rope Clutch, Spinlock, Spinlock XCS, XCS

Spinlock XCS Rope Clutches offer a range of exceptional quality finishes to match most yacht decks and rigs. Choose XCS clutches when the mounting location requires extra durability such as mast mounting, when matching surface finishes for aesthetics with other clutches and jammers such as XX or ZS or when constant high load handle release will occur. The two versions of this clutch offer a wide line diameter range, 6 – 10 mm and 8 – 14 mm. The safe working load at the max line diameter goes up to 1200 kg (2640 lbs).

The clutch range covers single, double and triple models as well as a side mount single version.

Spinlock XCS Clutch Features

  • Aluminium sides for sustained higher load operation
  • Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
  • Mid to higher load rope holding
  • Reliable all around performance
  • Available in white coated, black anodised or silver polished alloy
  • XCS0610 for best performance on smaller diameter lines
  • XCS0814 for best performance across the rope range
  • Extruded alloy handle with soft end grip
  • Secure handle locking in open and closed position
  • Easy access to fasteners
  • Handle labels supplied

Product Code: SPXCS0610 and SPXCS0814

For product pricing and stock availability please call +852 2827 5876 or contact us.

Share this:

  • Share
  • Facebook
  • Twitter
  • Pinterest
  • LinkedIn
  • Email
  • Print
  • Description

Spinlock XCS Rope Clutch

Spinlock XCS Rope ClutchSpinlock XCS Rope Clutches offer a range of exceptional quality finishes to match most yacht decks and rigs. Choose XCS clutches when the mounting location requires extra durability such as mast mounting, when matching surface finishes for aesthetics with other clutches and jammers such as XX or ZS or when constant high load handle release will occur. The two versions of this clutch offer a wide line diameter range, 6 – 10 mm and 8 – 14 mm. The safe working load at the max line diameter goes up to 1200 kg (2640 lbs).

The clutch range covers single, double and triple models as well as a side mount single version.

Spinlock XCS Clutch Features

  • Aluminium sides for sustained higher load operation
  • Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
  • Mid to higher load rope holding
  • Reliable all around performance
  • Available in white coated, black anodised or silver polished alloy
  • XCS0610 for best performance on smaller diameter lines
  • XCS0814 for best performance across the rope range
  • Extruded alloy handle with soft end grip
  • Secure handle locking in open and closed position
  • Easy access to fasteners
  • Handle labels supplied

Specifications

XCS0610

Lines: 6mm – 10mm (1/4″ – 3/8″)
Loads up to 1000kg (2200lbs)

XCS0814

Lines: 8mm – 14mm (5/16″ – 9/16″)
Loads up to 1000kg (2200lbs)

XCS0610 – Small diameter, high load

For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line. To upgrade from XCS0814, fit CAM-0610

Side Mounting

Side mounting is usually the neatest solution for spars, side decks and coamings

Lock Open Cam XCS/L

Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed

Weights

XCS Single – 630g (22.1oz)

XCS Double – 1130g (39.6oz)

XCS Triple – 1610g (56.4oz)

Fasteners

XCS Single – 2 x M8 (5/16″) CSK Head (not supplied)

XCS Double – 4 x M8 (5/16″) CSK Head (not supplied)

XCS Triple – 6 x M8 (5/16″) CSK Head (not supplied)

For more information about and a full product range, please go to the official Spinlock website: www.spinlock.co.uk
