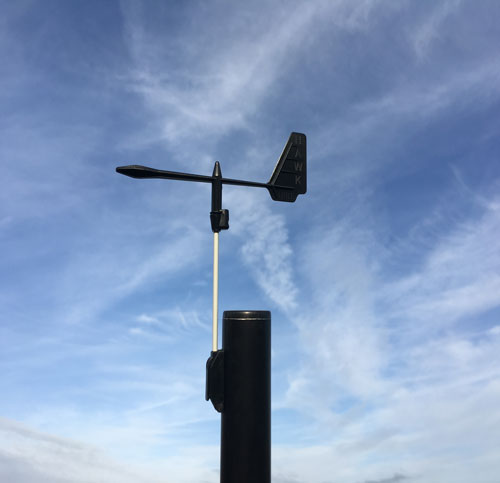

Little Hawk Race Podium Edition Wind Indicator

The Little Hawk Race Podium Edition has all the benefits of the standard Little Hawk Race but uses the new Podium Edition Vane Arm. This has been computer designed to increase strength and stiffness as well as reducing weight and its moment of inertia. This makes it overall lighter, more sensitive in light airs and more robust. The Podium Edition also uses a new locking block system so that you will never lose a Vane Arm again. Ideal for all racing boats up to 8m.

The Mast Clamp is screwed to the mast with 2 self tapping screws (Supplied), the Little Hawk Race Podium Edition is then pushed into place or removed easily in seconds without any tools.

Wind Indicator Features:

  • Vane Arm Length: 15cm
  • Overall Height: 14cm
  • Overall Weight: 13.5gms
  • Bearing: Aluminium Pin
  • UV Protected: Yes
  • Balanced Arm: By design

Use:
Dinghy’s up to 8m

Product Code: HK21

For product pricing and stock availability please call +852 2827 5876 or contact us.

Description

Little Hawk Race Podium Edition Wind Indicator

Little Hawk Race Podium Edition Wind IndicatorThe Little Hawk Race Podium Edition has all the benefits of the standard Little Hawk Race but uses the new Podium Edition Vane Arm. This has been computer designed to increase strength and stiffness as well as reducing weight and its moment of inertia. This makes it overall lighter, more sensitive in light airs and more robust. The Podium Edition also uses a new locking block system so that you will never lose a Vane Arm again. Ideal for all racing boats up to 8m.

The Mast Clamp is screwed to the mast with 2 self tapping screws (Supplied), the Little Hawk Race Podium Edition is then pushed into place or removed easily in seconds without any tools.

Wind Indicator Features:

  • Vane Arm Length: 15cm
  • Overall Height: 14cm
  • Overall Weight: 13.5gms
  • Bearing: Aluminium Pin
  • UV Protected: Yes
  • Balanced Arm: By design

Use:
Dinghy’s up to 8m

Assembly Instructions

  1. The Vane Arm is already assembled
  2. Check that the Vane Arm turns freely
  3. Align the Mast clip to the top of your mast
  4. It is ideally situated about 6cm from the top and clear of all the pullies
  5. You will need to drill 2 x 2.5mm holes and screw the mast clip in with the Screws provided
  6. The support rod will just clip in or out as required

Please refer to the manufacturer’s website for more information: www.hawkmarineproducts.com. For product pricing and also stock availability please call +852 2827 5876 or contact us.
