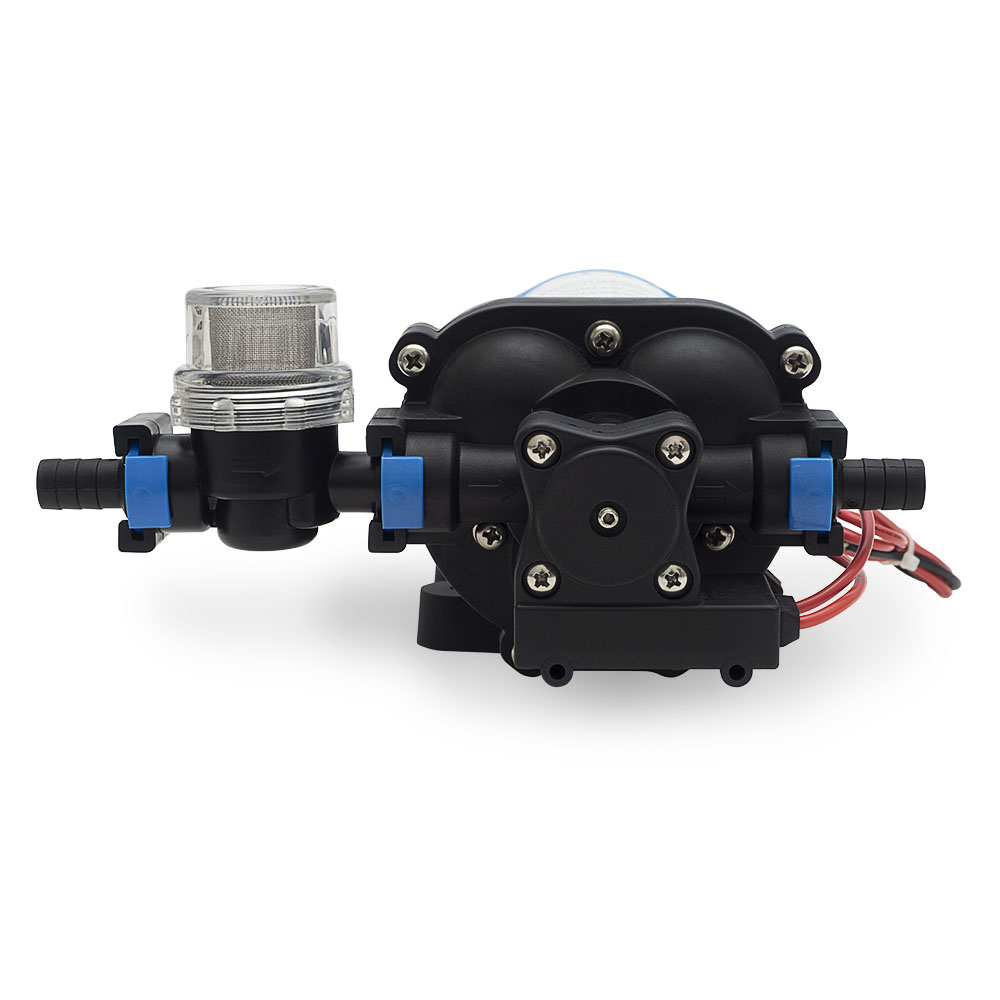

Albin WP300 Series Water Pressure Pump – WPS 2.6 12V

Albin Pump Marine WPS300 series 3-chamber diaphragm Water Pressure System pumps provide pressurized water on demand! WPS pumps supply continuous, pulsation-free, pressurized flow of both hot and cold water to faucets, shower heads and more. Choose between the 3- and 5-chamber diaphragm pumps, depending on required flow rates and number of faucets to be served.

12V water pressure pump with a capacity of 10l/min (2.6GPM). For continous supply of pressurized water on demand. Cut off pressure 2.8bar (40psi).

Extra heavy duty sealed pressure switch, smooth and pulsation free flow, quiet operation. Serve up to 3 outlets.

Easy to install with quick connect ports for 1/2″ hose, inlet strainer 40 mesh included. Fuse size 10A.

Features

  • Easy to install
  • Integrated extra heavy duty sealed pressure switch
  • Smooth & Pulsation-free flow Quiet operation
  • Serves multiple outlets
  • Self-priming 2m ( 6.5 feet)
  • Quick disconnect ports
  • Connection with ½” hose
  • Click-on 40μm-mesh strainer included
  • Composite base mount for even quieter operation
  • Manufactured according to CE standard; EN55014-1, ISO 88461 & ISO10133. Under approval

For product information, availability and pricing, please call +852 2827 5876 or use our contact page.

Description

Albin WP300 Series Water Pressure Pump – WPS 2.6 12V

Albin WP300 Series Water Pressure Pump - WPS 2.6 for 12V CircuitsAlbin Pump Marine WPS300 series 3-chamber diaphragm Water Pressure System pumps provide pressurized water on demand! WPS pumps supply continuous, pulsation-free, pressurized flow of both hot and cold water to faucets, shower heads and more. Choose between the 3- and 5-chamber diaphragm pumps, depending on required flow rates and number of faucets to be served.

12V water pressure pump with a capacity of 10l/min (2.6GPM). For continous supply of pressurized water on demand. Cut off pressure 2.8bar (40psi).

Extra heavy duty sealed pressure switch, smooth and pulsation free flow, quiet operation. Serve up to 3 outlets.

Easy to install with quick connect ports for 1/2″ hose, inlet strainer 40 mesh included. Fuse size 10A.

Developed for safe performance in all weather conditions and bilge environments. Easy to install and also robustly engineered to maximize lifetime. For harsh saltwater and freshwater use, heavy duty motors with stainless steel shaft as well as durable high impact thermoplastic housing. Designed to be interchangeable, classified as safety products with 2 years limited warranty.

Features

  • Easy to install
  • Integrated extra heavy duty sealed pressure switch
  • Smooth & Pulsation-free flow Quiet operation
  • Serves multiple outlets
  • Self-priming 2m ( 6.5 feet)
  • Quick disconnect ports
  • Connection with ½” hose
  • Click-on 40μm-mesh strainer included
  • Composite base mount for even quieter operation
  • Manufactured according to CE standard; EN55014-1, ISO 88461 & ISO10133. Under approval
Part No. Capacity
No. of outlets
Pressure cutoff
Connection
Voltage Fuse Dimensions WxDxH
02-01-003 9.8L/min (2.6GPM) 1 to 3 2.8bar
(41psi)
½” hose 12V 10A 205 x 125 x 110mm
(8 x 5 x 4.3 inches)

Please go to the official Albin Pump Marine site www.albinpumpmarine.com to see the full range of options and extras. We are here to help too, feel free to get in touch and we can help with pricing and also details, please call +852 2827 5876 or use our contact page.

Albin Pump Marine offers an extensive range of pumps and pump solutions for improved comfort and safety onboard. They develop their products in Sweden while manufacturing with partners around the world.

Albin Pump Marine’s embrace of digital development, modern manufacturing technology and a global on-line presence, ensures greater flexibility and greater speed to market than ever before known in the industry.
