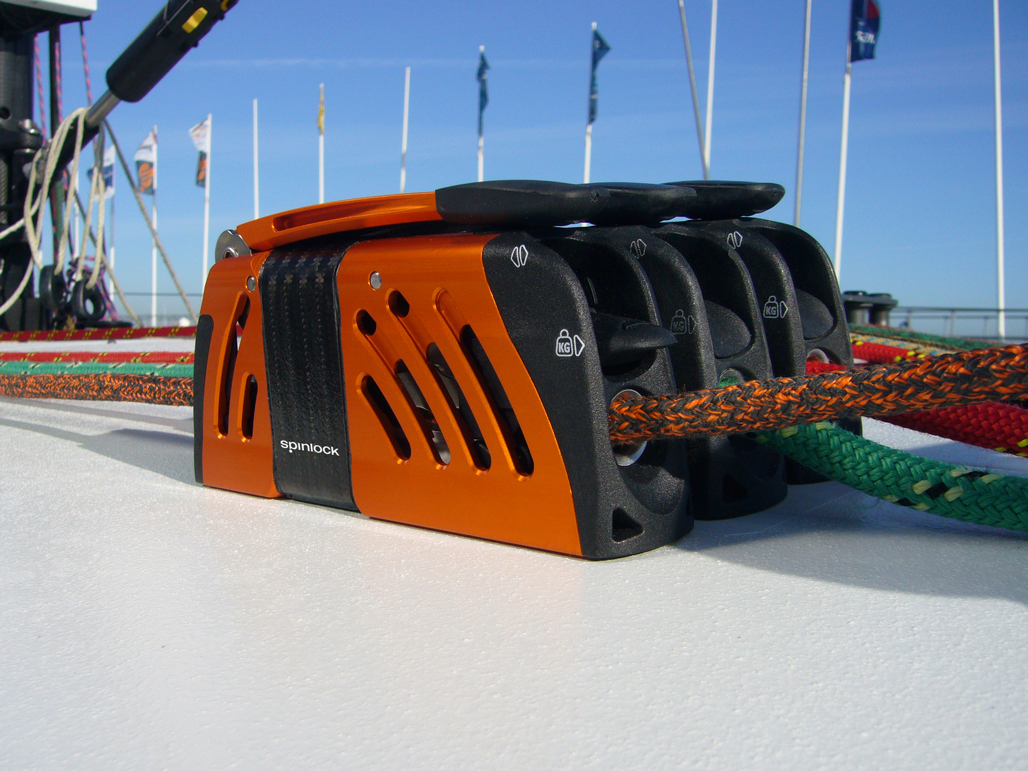

Spinlock XXC Powerclutch
The Spinlock XXC powerclutch range meets the growing demand for ultra-high performance rope clutches. The XXC clutch is optimized for high performance 8 to 12 mm lines. Choose an XXC powerclutch for working loads and diameters that can’t be held reliably with conventional rope clutches but where the winched release of the ZS Jammer is impractical. These clutches have a lightened handle and body. The Spinlock XXC powerclutch is locally reinforced with unidirectional carbon fibre and with critical components in Titanium in place of stainless steel. The jaws are ceramic coated to hold hybrid covered lines at loads up to 2350kg (5180lbs) and help resist heat generated at higher line speeds.
Spinlock XXC Powerclutch Features
- Holds up to 2350kg working load, 30% higher than the standard XX0812, yet still provides controlled release under load
- XXC0812 delivers a 50% increase in power: weight, yet is 15% lighter
- Lightened handle and body; locally reinforced with unidirectional carbon fibre and with critical components in Titanium*
- Ceramic coated jaws hold hybrid covered lines at loads up to 2350kg and help resist heat generated at higher line speeds for extended jaw life
- Optimised for high performance 8-12mm (5/16-1/2”) line diameters
- Internal Torlon roller bearings ensure lasting performance and durability under high loads
- Easy on-deck access for removing complete internal assembly even when banked together
- Access ports for fresh water flushing
- Black, silver and amber versions available
NB: XXC is available with 17-4PH stainless steel parts for teams competing in classes where Titanium is prohibited
XXC or ZS Jammer?
Choose XXC for working loads/diameters that can’t be held reliably with conventional clutches but where the winch release of the ZS Jammer is impractical
Choose ZS for bigger diameters/high loads where winched release is positive safety feature and instant release is unnecessary
Specifications
Lines: 8mm – 12mm (5/16″ – 1/2″)
Loads up to 2350kg
Lock Open – XXC0812/L
Allows line to run freely in or out with the handle closed
Ideal for applications such as spinnaker sheets and mainsheet when locking is rarely needed
Lifting the rear switch instantly applies clutching mode
Side Mount
Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight
Weights
XXC0812 – 860g (30.33oz)
XX0812/HP – 870g (30.68oz)
XX0812/HS – 870g (30.68oz)
XXC0812/HBP – 850g (29.98oz)
XXC0812/HBS – 850g (29.98oz)
Fasteners
XX0812 – 2 x M8 (5/16″) Titanium Hex Head (Supplied)
XX0812/HP – 5 x M6 (1/4″) Titanium CSK Head (Supplied)
XX0812/HS – 5 x M6 (1/4″) Titanium CSK Head (Supplied)
XXC0812/HBP – N/A (Bonded)
XXC0812/HBS – N/A (Bonded)
For more information about and a full product range, please go to the official Spinlock website: www.spinlock.co.uk
