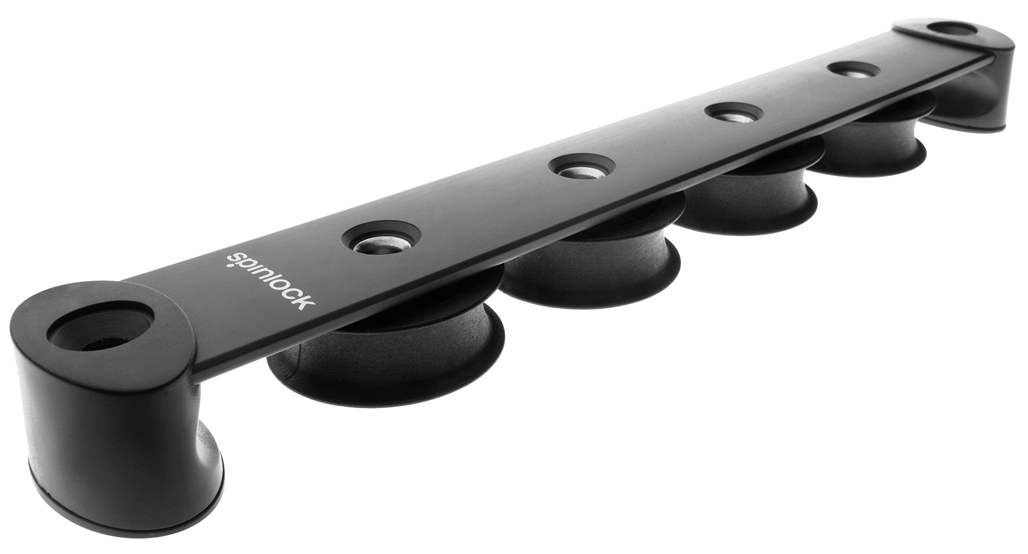

Spinlock T38 Deck Organiser

Spinlock T38 Deck Organiser series guide multiple lines from the mast to banks of clutches or jammers. Proven fibre-reinforced construction and stainless steel “Wear” strip prevents local rope damage. Secure stainless steel unlinked base for fitting on non flat surfaces, which simplifies deck sealing. Asymmetric version reduces deck footprint and saves weight. T38/T50 can stack for limited deck area or added extra capacity.

Spinlock T38 Deck Organiser Features

Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Asymmetric version reduces deck footprint and saves weight
Can ‘stack’ for limited deck area or adding extra capacity.
Vari-camber feature: Designed to follow the curve of the deck when fitted
50mm sheave versions, T50, available

Specifications

Sheave Diameter/Type

38mm (1 1/2″) composite

SWL per sheave

600kg (1320lbs)

Total SWL per unit

No of sheaves x 300kg (660lbs)

Line Diameter

Up to 12mm (1/2″)

Weight & Fasteners

Weight

115g (4.0oz) for 2 sheave organiser
30g (1.1oz) per extra sheave

Fasteners

2 x M6 (1/4″) CSK (not supplied)

For more information about and a full product range, please go to the official Spinlock website: www.spinlock.co.uk
