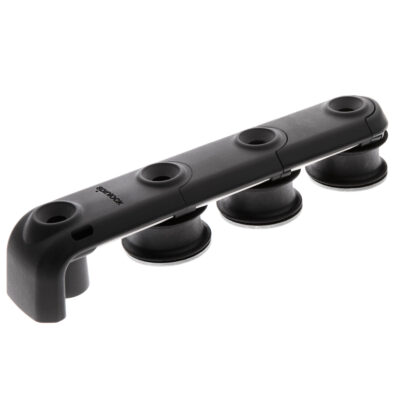

Spinlock T25 Deck Organiser

Spinlock T25- Series organisers guide multiple lines from the mast to banks of clutches or jammers. Proven fibre-reinforced construction and stainless steel “Wear” strip prevents local rope damage. Secure stainless steel unlinked base for fitting on non flat surfaces, which simplifies deck sealing.

Spinlock T25 Deck Organiser Features

Small boat organiser – 25mm sheaves
Symmetric or Asymmetric configurations – 2 to 6 sheaves
Fibre-reinforced construction
Stainless steel ‘wear’ strip prevents local rope damage
Curves to follow the shape of the deck

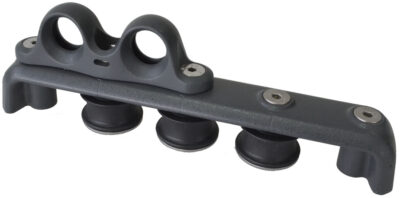

Double stack with BE10/2 or /3 (see BE10 multiple range) for lowest cost stacked line solution

Specifications

Sheave Diameter/Type

25mm (1″) composite

SWL per Sheave

400kg (880lbs)

Total SWL per unit

No of sheaves x 200kg (440lbs)

Line Diameter

Up to 10mm (3/8″)

Weight & Fastners

Weight

64g (2.2oz) for 2 sheave organiser
20g (0.7oz) per extra sheave

Fasteners

2x M5 (3/16″) CSK Head (not supplied)
