Spinlock PXR Cam Cleat
The cleat you tune for the way you race
Designed for precision control, these PXR Cam Cleat features an adjustable release spring that allows you to control how easy the camcleat is to release – an industry first. The incorporated three-stage release spring can be pre-set for the prevailing conditions and application. Select lighter settings for continuously trimmed sheets, traveller controls, vangs and similar controls. Harder settings for halyards and occasionally adjusted lines.
While sailing, the roller action of the cleat keeps the release effort easy, even as the wind strength increases. A high-performance development of the successful PX range, the cleat is sized for performance rope ranges 2–6mm and 8–10mm. SW-series versions come with a swivel-mount. T-series versions (cleats with retro bases) use the same (27mm and 38mm) hole centers as traditional cam cleats, allowing direct retrofit anywhere without drilling. The VP is a pivoting sheave and cleat unit for mast base or track.
Spinlock PXR Cam Cleat Features
- Fast precise control for hand tensioned lines
- Roller action ensures easy release under high load
- Hard anodised alloy cam and base
- Ideal for high performance lines
- Micro size for small diameters
- Three stage release control switch
- Ideal for single line spinnaker hoist systems
- Resists accidental re-cleating
Specifications
PXR0206
Lines: 2mm – 6mm (3/32″ – 1/4″)
Loads up to 140kg (308lbs)

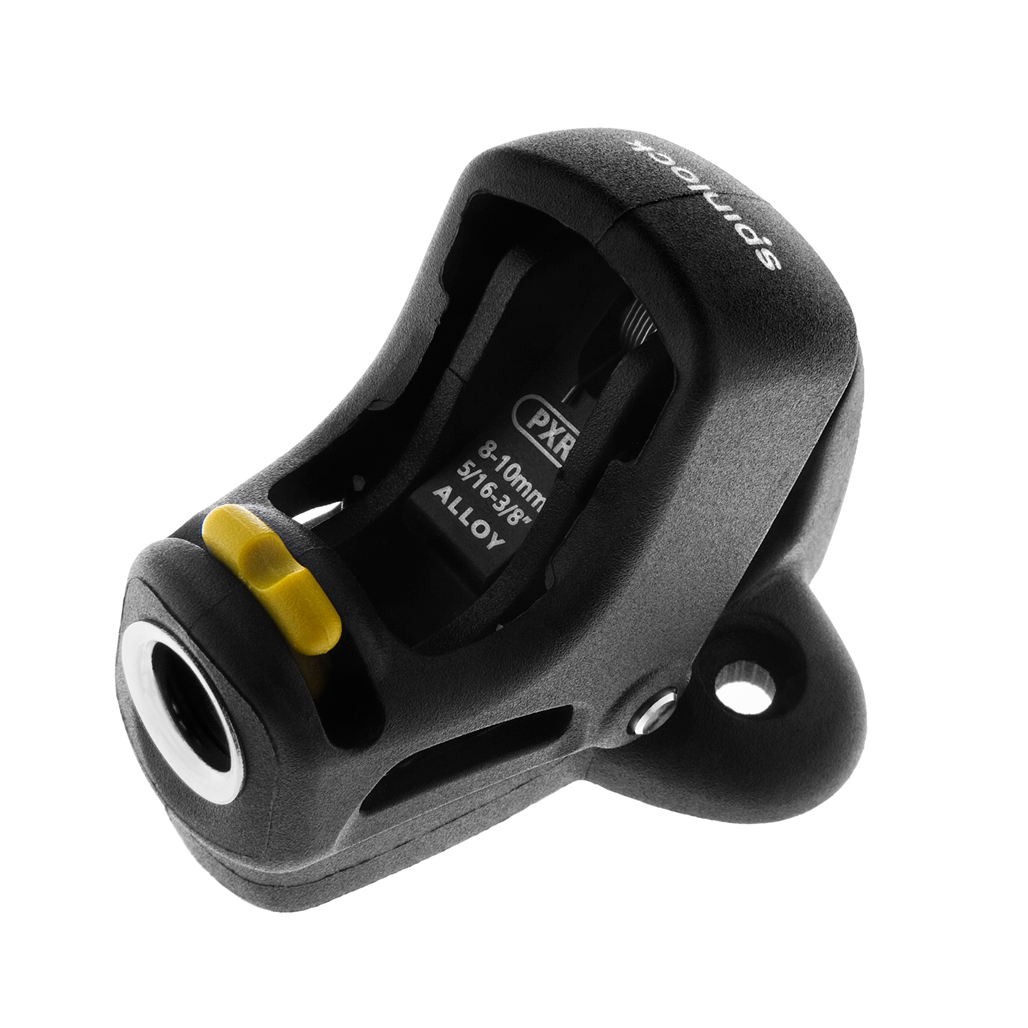

PXR0810
Lines: 8mm – 10mm (5/16″ – 3/8″)
Loads up to 200kg (440lbs)
Retro Fit ‘T’ – Matched hole centres allow direct replacement of traditional cam cleats with PXR
PXR0206/T – 27mm (1 1/16”) hole centres – for upgrading dinghy control line cam cleats
PXR0810/T – 38mm (1 1/2”) hole centres – for upgrading main sheet swivel cleats and traveller systems on dinghies, keelboats and yachts, and upgrading cam cleats on downhauls, vang and backstay controls
Deck Swivel ‘SW’
PXR0206/SW for single cleat control of jib sheets and dinghy vangs. Preferred by dinghy builders for single line spinnaker hoist systems
PXR0810/SW for bigger boat swivel cam cleat control applications
Same footprint as traditional swivel cam cleats
Vertical Pivot ‘VP’ (2-6mm version only)
Pivoting sheave and cleat with ultra compact design
Mount centrally for feeding control lines out to the sides
Mount under boom for outhaul and gnav controls
Mount at mast base for catamaran downhauls and vangs
Easily detached
Accepts Harken sheave ref: H415
Mast Bracket
Mast bracket available for PXR0206 and PXR0810
