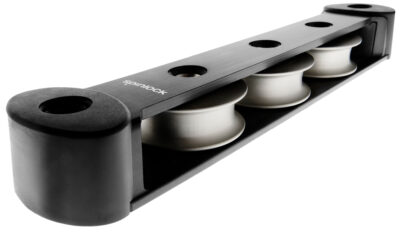

Spinlock TC50 Deck Organiser

Spinlock TC50 Deck Organiser series guide multiple lines from the mast to banks of clutches or jammers. Proven fibre-reinforced construction and stainless steel “Wear” strip prevents local rope damage. Secure stainless steel unlinked base for fitting on non flat surfaces, which simplifies deck sealing. Asymmetric version reduces deck footprint and saves weight. The Spinlock TC50 is specifically designed for higher loads.

Spinlock TC50 Deck Organiser Features

TC50 organisers are specially developed for higher loads
Minimal overall length
Efficient bearings surface reduces winch effort and increases halyard life
Integral end fairings for safe side loading
Double stack versions available
Can be used as an Aft Organiser to divert lines from a clutch to a winch
50mm sheave versions, T50, available for lower loads
38mm sheave versions, T38, available

Specifications

Sheave Diameter / Type

TC50 – 50mm (2″) alloy
TC50/D – 50mm (2″) alloy

SWL per sheave

TC50 – 1500kg (3300lbs)
TC50/D – 1000kg (2200lbs) upper row
TC50/D – 1500kg (3300lbs) lower row

Total SWL per unit

TC50 – Number of sheaves x 750kg (1650lbs)
TC50/D – Number of sheaves x 500kg (1100lbs) upper row
TC50/D – Number of sheaves x750kg (1650lbs) lower row

Line Diameter

TC50 – Up to 14mm (9/16″)
TC50/D – Up to 14mm (9/16″)

Weight & Fasteners

Weight

TC50 – 575g (20.1oz) for a 2 sheave organiser add 130g (4.6oz) per extra sheave

TC50/D – 750g (26.3oz) for a 2 sheave organiser add 215g (7.5oz) per extra pair of sheaves

Fasteners

TC50 – M8 (5/16″) CSK Supplied

TC50/D – M8 (5/16″) CSK Supplied

For more information about and a full product range, please go to the official Spinlock website: www.spinlock.co.uk
